باکس مدوسا پرو 2 Medusa Pro II Full Set

Medusa Pro II Upgrade Set is intended for those users who already own Medusa / Medusa Pro Box / Octoplus Pro Box and would like to upgrade to Medusa Pro II version.

• Introduced ISP method for UFS flash memory without desoldering
• Identification of external expansion boards (UFS, eMMC sockets, PIN-CONNECTOR, etc.)
  • capable to work with other peripherals by means of PIN-CONNECTOR
• Advanced multicolor indication of operation modes

Software

UFS

• UFS operation modes: slow (PWM) and fast (HS)
• Read Android build info
• Main features:
  • Read
  • Write
  • Wipe Data
• UFS Service Operations
  • Distribute UFS Storage
  • Configure UFS descriptors, attributes, flags
  • Save/Write Config descriptors
  • Save/Write attributes
  • Save Flags
  • Write OEM ID
  • Format UFS (all active LUN)
  • Read RPMB Counter
• Factory Repair of UFS flash memory

EMMC

• Introduced ability to work with MMC by means of 8-bit bus
• Increased MMC data transfer speed
• Detection of eMMC socket connection
  • BGA153/169
  • BGA162/186
  • BGA529
  • BGA221

Medusa PRO II Box - All Features:

Medusa PRO II - Hardware Features:

• Fast USB 3.0 high-speed mode (+USB 2.0 compatibility)
• UFS data transfer speed 55 MB/s (writing) / 100 MB/s (reading) and more
  • depends on PWM/HS working mode and flash storage speed
• 1-bit, 4-bit and 8-bit MMC buses supported (40 MB/s and more)
  • speed depends on bus width and flash storage speed
• In System Programming (ISP) now possible for MMC and UFS flash memory types
  • without desoldering, if there is a technical capability to solder by means of PIN-CONNECTOR expansion board
• All output voltages (VCC, VCCQ, VCCQ2) regulation within operation range 1.2…3.3V

Medusa PRO II - Software Features:

• Full-featured professional software
  • Supports all operations (Read, Write and Edit) with any required memory partition via UFS, MMC, and USB interfaces.
• Service operations with UFS memory
  • Divide flash memory into LUN units
  • Work with descriptors, attributes, flags
  • Write OEM ID
  • Erase memory on all active LUN
  • Read RPMB Counter
• Service operation with MMC flash memory
  • Edit: geometry, partitions, CID, CSD and other data registers
  • Restore/Update flash memory firmware
  • Read/View Extended CSD registers
  • Format flash memory
• Simple intuitive GUI interface suitable for both beginners and experts
• Quick device restoration by means of SRF files
• SRF files contain partition data as well as other useful information (help files and diagrams)
• SRF data are compressed (to increase performance)
• Built-in Partition Manager
  • Partition Manager allows you to edit the required partitions and save changes thus improving user experience. Plus, you will be able to open Full Flash binary files, edit the file content and save the edited file back on the device.
• Simple operation for each partition separately (Read, Write, Erase, Edit) on the specific storage devices
• Built-in Smart-Repair-File Constructor with Partition Manager for creating your own SRF files
  • SRF file can be taken from the device or read from Full Flash binary file. This functionality allows user (without developer’s assistance) add devices to the list of supported models, which are not officially supported yet. User can upload the custom SRF file into separate section of Support Zone and submit it for further analysis of the developers. If this custom SRF file is considered legitimate and correct, name (or nickname) of the author will be credited within the next update. Thus, user has the opportunity to participate in the development of Medusa PRO II and become known in certain circles.
• Built-in Download Manager allows you to download files directly from the software
• Devices with NAND, OneNAND and eMMC memory types are supported via USB interface
• Devices with eMMC memory type are supported via MMC interface
• Software is compatible with Windows 10

Medusa PRO II Box - Supported UFS Types:

• KLUDG8J1EB-B0B1  SAMSUNG 119.19 GB
• KLUDG8V1EE-B0C1  SAMSUNG 119.19 GB
• KLUDG8J1CB-B0B1  SAMSUNG 119.19 GB
• KLUCG4J1CB-B0B1  SAMSUNG 59.60 GB
• KLUCG4J1EB-B0B1  SAMSUNG 59.60 GB
• KLUCG4J1ED-B0C1  SAMSUNG 59.60 GB
• KLUBG4G1CE-B0B1  SAMSUNG 29.81 GB
• KLUDG4U1EA-B0C1  SAMSUNG 119.20 GB
• KLUBG4G1BD-E0B1  SAMSUNG 29.81 GB
• THGAF8T1T83BAIRB  TOSHIBA 238.37 GB
• THGAF8T0T43BAIRB  TOSHIBA 119.20 GB
• THGAF8G9T43BAIRB  TOSHIBA 59.61 GB
• THGAF4G9N4LBAIRB  TOSHIBA 59.61 GB
• THGBF7G8K4LBATRC  TOSHIBA 32GB
• THGAF8G8T23BAILB  TOSHIBA 29.82
• THGAF4G9N4LBAIRA  TOSHIBA 60 GB
• SDINDDH4-32G  SANDISK 32GB
• H28U74303AMR (hC8aM1)  SKHYNIX 60 GB
• H28U74301AMR (hC8aL1)  SKHYNIX 60 GB
• H28U62301AMR (hB8aL1)  SKHYNIX 29.81 GB

Comparison Table:

Medusa Pro II (Upgrade Set) - Package Contents:

• Medusa Pro II Box - 1 pc.

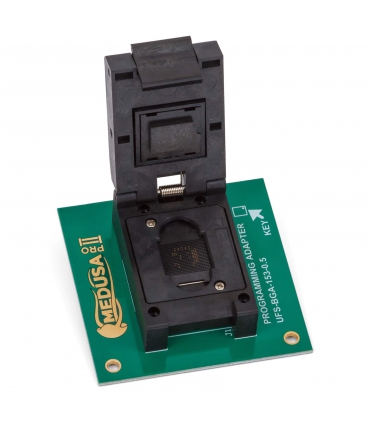

• Medusa Pro II Pin - Connector Adapter - 1 pc.
• USB 3.0 A – A Data Cable - 1 pc.
• Free Medusa Pro II Support Area
